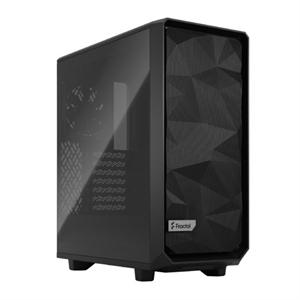

Fractal Design Meshify 2 Compact Black TG Light Tint

UPC Code: 843276102340
Manufacturer Warranty: 2 Year
D&H Returns Allowed: yes
Return Period (Days): 45
Add'l Return Info: Past Exch-Call Vendor 855-446-3722
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   Fractal Design
Manufacturer Part Number:   FD-C-MES2C-03
Manufacturer Website Address:   www.fractal-design.com
Brand Name:   Fractal Design
Product Line:   Meshify 2 Compact
Product Name:   Meshify 2 Compact Black TG Light Tint
Marketing Information:

Meshify 2 Compact Light Tempered Glass

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

• Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
• Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
• Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases

A classic evolved

Removable front filter

• New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
• Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
• New front nylon filter that can be removed for increased airflow

Robust cooling

• Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm
• Open interior layout creates a smooth airflow path from intake to exhaust
• Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)

Fully featured

• Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
• Flexible storage options supporting two 2.5"/3.5" drives and up to four SSDs (two SSD brackets included)
• Improved cable routing with three integrated cable alignment clips and six velcro straps

Filtered airflow

...creates a smooth airflow path

Top priority access

The fully removable top panel opens to provide excellent interior access

Spaciously compact

Clever layout enables the capacity of much larger cases

Type-C interface

USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps

Smooth and quiet operation

The sturdy steel drive trays are vibration-damped by cushioning rubber grommets

Full length shroud

A full-length power supply shroud readily conceals the drive cage and excess cabling

Product Type:   Computer Case

Technical Information

Motherboard Supported:   ATX
Motherboard Supported:   Mini ATX
Motherboard Supported:   Mini ITX
Number of Fans Supported:   7
Number of Fans Installed:   3
Installed Fan Size:   4.72" (120 mm)
Installed Fan Size:   5.51" (140 mm)

Bays

Number of External 5.25" Bays:   0
Number of Internal 5.25" Bays:   0
Number of Internal 2.5" Bays:   4
Number of Internal 2.5"/3.5" Bays:   2
Number of Total Expansion Bays:   6

I/O Expansions

Number of Total Expansion Slots:   7

Interfaces/Ports

Total Number of USB Ports:   3
Front USB:   Yes
Total Number of Audio In Ports:   1
Front Audio In:   Yes
Total Number of Audio Out Ports:   1
Front Audio Out:   Yes

Power Description

Power Supply Installed:   No
Number of Power Supplies Supported:   1
Number of Power Supplies Installed:   0

Physical Characteristics

Product Color:   Black
Product Material:   Mesh
Product Material:   Steel
Product Material:   Tempered Glass
Form Factor:   Mid-tower
Height:   18.70" (475 mm)
Width:   8.27" (210 mm)
Depth:   16.69" (424 mm)
Weight (Approximate):   8.10 kg

Miscellaneous

Package Contents:

• Meshify 2 Compact Black TG Light Tint
• User Manual
• Accessory Box
• 2 x SSD Brackets

Country of Origin:   China

Warranty

Limited Warranty:   2 Year
