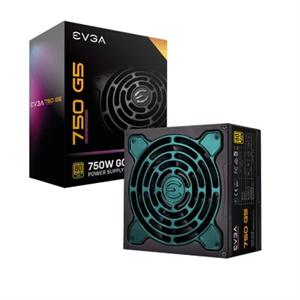

EVGA SuperNOVA 750 G5 Power Supply

UPC Code: 843368062118
Manufacturer Warranty: 10 Year
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call EVGA 888-881-3842
Master Pack Qty: 4
Country of Origin: TAIWAN

General Information

Manufacturer:   EVGA Corporation
Manufacturer Part Number:   220-G5-0750-X1
Manufacturer Website Address:   www.evga.com
Brand Name:   EVGA
Product Line:   SuperNOVA
Product Series:   G5
Product Model:   750 G5
Product Name:   SuperNOVA 750 G5 Power Supply
Marketing Information:

The EVGA SuperNOVA G5 joins the elite ranks of the EVGA 80 PLUS Gold power supplies. As the successor to the award-winning G3 series, the G5 power supplies continue to push the envelope with the latest certifications and Intel power-on standards. Starting with 80 PLUS Gold certification, a fully-modular cable design, 100% Japanese capacitors, and an ultra-quiet 135mm Fluid Dynamic bearing fan with EVGA ECO mode, these power supplies are built for performance and silence.

Product Type:   Power Supply

Technical Information

Specification Compliance:   ATX12V/EPS12V
Efficiency:   91%
Number of Fans:   1
Modular:   Yes
ATI CrossFire Supported:   Yes
NVIDIA SLI Supported:   Yes

Power Description

Number of +12V Rails:   1
Input Voltage:   120 V AC
Input Voltage:   230 V AC
Output Voltage:   12 V DC @ 500 mA
Output Voltage:   12 V DC @ 62.5 A
Output Voltage:   3.3 V DC @ 24 A
Output Voltage:   5 V DC @ 24 A
Output Voltage:   5 V DC @ 3 A
Output Power:   750 W

Physical Characteristics

Form Factor:   Internal
Height:   3.39" (86 mm)
Width:   5.91" (150 mm)
Depth:   5.91" (150 mm)

Miscellaneous

Environmentally Friendly:   Yes
Environmental Certification:   80 Plus Gold
Environmental Certification:   ErP Lot 3
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   Taiwan

Warranty

Limited Warranty:   10 Year
