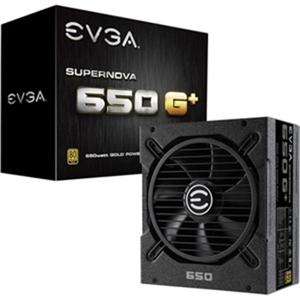

EVGA SuperNOVA 650W Power Supply

UPC Code: 843368048495
Manufacturer Warranty: 5 YEAR
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call EVGA 888-881-3842
Master Pack Qty: 4
Country of Origin: CHINA

General Information

Manufacturer:   EVGA Corporation
Manufacturer Part Number:   120-GP-0650-X1
Manufacturer Website Address:   www.evga.com
Brand Name:   EVGA
Product Line:   SuperNOVA
Product Name:   SuperNOVA 650W Power Supply
Marketing Information:   The EVGA SuperNOVA G+ Power Supplies have arrived. Launched in 2013, the EVGA SuperNOVA G1 power supplies have been among the longest-lasting and best-performing power supplies on the market. Despite only a few changes over the years, it's only fitting that these are due for an upgrade. Enter the G+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating.

Compared to the EVGA SuperNOVA G1 power supplies, the G+ are up to 20mm shorter, feature 100% Japanese capacitors, are up to 20% quieter, have much tighter 12v. load regulation, and have a superior fluid-dynamic bearing fan. Combining a full set of current, voltage, and temperature protections with EVGA's World Leading 10-Year Warranty, the EVGA SuperNOVA G+ power supplies set the new Gold standard for performance and value.
Product Type:   Power Supply

Technical Information

Specification Compliance:   ATX12V/EPS12V
Efficiency:   90%
Number of Fans:   1
Modular:   Yes

Power Description

Number of +12V Rails:   1
Input Voltage:   120 V AC
Input Voltage:   230 V AC
Output Voltage:   12 V DC @ 500 mA
Output Voltage:   12 V DC @ 54 A
Output Voltage:   3.3 V DC @ 24 A
Output Voltage:   5 V @ 3 A
Output Voltage:   5 V DC @ 24 A
Output Power:   650 W

Physical Characteristics

Form Factor:   Internal
Height:   3.35" (85 mm)
Width:   5.91" (150 mm)
Depth:   6.69" (170 mm)
Weight (Approximate):   3.18 kg

Miscellaneous

Certifications & Standards:

cTUVus

T?V

Environmentally Friendly:   Yes
Environmental Certification:   80 Plus Gold
Environmental Certification:   ErP Lot 6
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   China

Warranty

Limited Warranty:   10 Year
