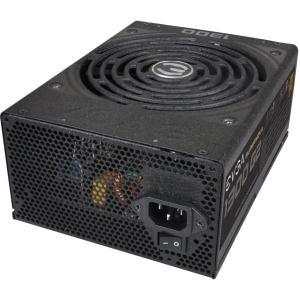

EVGA Supernova 1300 G2 1300W Power Supply

UPC Code: 843368024550
Manufacturer Warranty: 10 Years w/ Registration
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call EVGA 888-881-3842
Master Pack Qty: 4
Country of Origin: TAIWAN

General Information

Manufacturer:   EVGA Corporation
Manufacturer Part Number:   120-G2-1300-XR
Manufacturer Website Address:   www.evga.com
Brand Name:   EVGA
Product Line:   SuperNOVA
Product Model:   1300 G2
Product Name:   Supernova 1300 G2 1300W Power Supply
Marketing Information:   Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)

The EVGA SuperNOVA 1300 G2 power supply is here. This power supply raises the bar with an 80 Plus Gold rating, with 1300W of continuous power, exceptional efficiency and a fully modular design. Not to mention, a first class 10 Year EVGA Warranty. The entire electrical design was engineered to be efficient, silent and optimized for the enthusiast. Take your system to the max with the EVGA SuperNOVA 1300 G2.
Product Type:   Power Supply

Technical Information

Specification Compliance:   ATX12V/EPS12V
Efficiency:   90%
Number of Fans:   1
Protection Type:   Over Current
Protection Type:   Over Power
Protection Type:   Over Temperature
Protection Type:   Over Voltage
Protection Type:   Short Circuit
Protection Type:   Under Voltage
Modular:   Yes
ATI CrossFire Supported:   Yes
NVIDIA SLI Supported:   Yes

Power Description

Number of +12V Rails:   1
Input Voltage Type:   AC
Input Voltage:   110 V AC
Input Voltage:   220 V AC
Input Voltage Range:   100 V AC - 240 V AC
Output Voltage:   -12 V DC @ 500 mA
Output Voltage:   12 V DC @ 108.3 A
Output Voltage:   3.3 V DC @ 24 A
Output Voltage:   5 V @ 3 A
Output Voltage:   5 V DC @ 24 A
Output Power:   1.30 kW

Interfaces/Ports

Plug/Connector:   On/Off Switch
Receptacles:   1 x 24-pin ATX Motherboard
Receptacles:   1 x 4-pin SP4 Floppy Drive
Receptacles:   12 x Serial ATA
Receptacles:   2 x 4+4pin ATX12V Motherboard
Receptacles:   2 x 6-pin PCI-E
Receptacles:   5 x 4-pin LP4 Peripheral Device
Receptacles:   6 x 6+2pin PCI-E

Physical Characteristics

Form Factor:   Internal
Height:   3.35" (85 mm)
Width:   5.91" (150 mm)
Depth:   7.87" (200 mm)
Weight (Approximate):   2.99 kg

Miscellaneous

Environmentally Friendly:   Yes
Environmental Certification:   80 Plus Gold
Environmental Certification:   RoHS 2
Country of Origin:   Switzerland

Warranty

Limited Warranty:   10 Year
