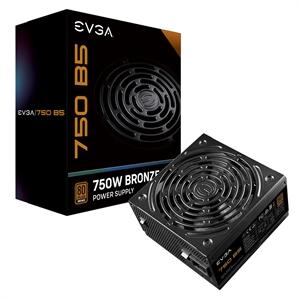

EVGA 750 B5 Power Supply

UPC Code: 843368064297
Manufacturer Warranty: 5 Year
D&H Returns Allowed: yes
Return Period (Days): 1
Add'l Return Info: Past Exchange-Call EVGA 888-881-3842
Master Pack Qty: 6
Country of Origin: CHINA

General Information

Manufacturer:   EVGA Corporation
Manufacturer Part Number:   220-B5-0750-V1
Manufacturer Website Address:   www.evga.com
Brand Name:   EVGA
Product Series:   B5
Product Model:   750 B5
Product Name:   750 B5 Power Supply
Marketing Information:

Introducing the EVGA B5 power supplies, the latest 80PLUS Certified Bronze power supplies to carry on the EVGA tradition of reliability, performance, and affordability. The B5 power supplies start with the most important standard for reliability - 100% Japanese Capacitors. Next, the B5 power supplies provide maximum flexibility by using a small chassis and a fully modular design. The ultra-quiet 135mm Fluid-Dynamic Bearing fan becomes silent when coupled with EVGA ECO mode to turn off the fan in medium to low loads. Last, but not least, the B5 power supplies have a full suite of protections and a 5-year limited warranty that you've come to know and expect from EVGA.

Product Type:   Power Supply

Technical Information

Specification Compliance:   ATX12V/EPS12V
Efficiency:   85%
Number of Fans:   1
Modular:   Yes

Power Description

Input Voltage:   120 V AC
Input Voltage:   230 V AC
Output Voltage:   12 V DC @ 500 mA
Output Voltage:   12 V DC @ 62.5 A
Output Voltage:   3.3 V DC @ 24 A
Output Voltage:   5 V DC @ 24 A
Output Voltage:   5 V DC @ 3 A
Output Power:   750 W

Physical Characteristics

Form Factor:   Internal
Height:   3.39" (86 mm)
Width:   5.91" (150 mm)
Depth:   5.91" (150 mm)

Miscellaneous

Environmentally Friendly:   Yes
Environmental Certification:   80 Plus Bronze
Environmental Certification:   ErP Lot 3
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   Taiwan

Warranty

Limited Warranty:   5 Year
