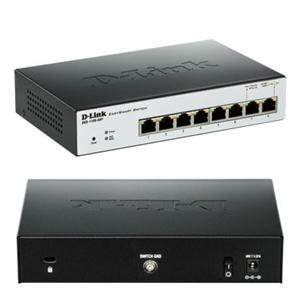

D-Link EasySmart 8-Port Gigabit PoE Switch

UPC Code: 790069387272
Manufacturer Warranty: Lifetime
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exch-Call D-Link 949-788-0805
Master Pack Qty: 10
Country of Origin: CHINA

General Information

Manufacturer:   D-Link Systems, Inc
Manufacturer Part Number:   DGS-1100-08P
Manufacturer Website Address:   www.dlink.ca
Brand Name:   D-Link
Product Line:   EasySmart
Product Series:   DGS-1100
Product Model:   DGS-1100-08P
Product Name:   EasySmart 8-Port Gigabit PoE Switch
Marketing Information:   D-Link's DGS-1100 Series EasySmart Switches provide an affordable solution for SOHOs, small/medium-sized businesses, as well as enterprise deployments, such as in branch offices that require simple network management. The DGS-1100 Series consists of 5, 8, 16, and 24 10/100/1000Mbps port models. The 5 and 8 port models come in a compact desktop enclosure, while the 16 and 24 port models come in a compact 11" desktop/rackmount enclosure. Two versions of the 8-port model are available - with and without Power-over-Ethernet (PoE) support. Compliant with IEEE802.3az Energy Efficient Ethernet, these switches consume less power during idle periods. They also implement D-Link Green features that detect link status and cable length and adjust power usage accordingly. Switch management can be performed through a web management interface or through the SmartConsole Utility. The DGS-1100 Series also supports Layer 2 features such as IGMP Snooping to optimize performance for multicast applications. A fanless design allows for quieter operation and provides a longer product life.
Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   8
Token Ring Port:   No
LRE Port:   No
Bypass:   No
Number of PoE (RJ-45) Ports:   8
Port/Expansion Slot Details:   8 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:   Twisted Pair
Ethernet Technology:   Gigabit Ethernet
Network Technology:   10/100/1000Base-T

Network & Communication

Layer Supported:   2

Management & Protocols

Manageable:   Yes
Management:

• Web-based Management
• Smart Console Utility
• QoS
• VLAN
• DHCP

Reliability

MTBF:   708.22 Hour

Power Description

PoE (RJ-45) Port:   Yes
Input Voltage:   110 V AC
Input Voltage:   220 V AC
Power Source:   Power Supply

Physical Characteristics

Form Factor:   Desktop
Height:   1.10" (27.94 mm)
Width:   7.40" (187.96 mm)
Depth:   4.70" (119.38 mm)
Weight (Approximate):   725.7 g

Miscellaneous

Certifications & Standards:

• FCC Class A
• CE Class A
• VCCI Class A

IEEE Standards:

• 802.3
• 802.3u
• 802.3ab
• 802.3x
• 802.3az

Safety:

• UL
• cUL
• CE LVD

Environmentally Friendly:   Yes
Environmental Certification:   RoHS

Warranty

Limited Warranty:   Lifetime
