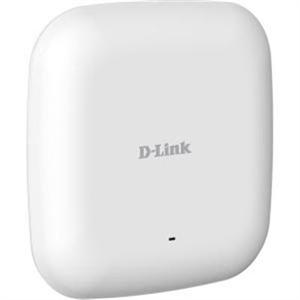

D-Link DAP-2610 IEEE 802.11ac 1.27 Gbit/s Wireless Access Point

UPC Code: 790069430909
Manufacturer Warranty: LIMITED LIFETIME
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exch-Call D-Link 949-788-0805
Master Pack Qty: 5
Country of Origin: TAIWAN

General Information

Manufacturer:   D-Link Systems, Inc
Manufacturer Part Number:   DAP-2610
Manufacturer Website Address:   www.dlink.ca
Brand Name:   D-Link
Product Model:   DAP-2610
Product Name:   Wireless AC1300 Wave 2 Dual-Band PoE Access Point
Marketing Information:   The DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilizing the cutting-edge speed of Wireless AC.

Blazing Wireless Wave 2 AC Performance

The DAP-2610 delivers reliable, high-speed wireless performance using the latest 802.11ac Wave 2 standard with maximum wireless signal rates of up to 400 Mbps (256-QAM) over the 2.4 GHz band, and 900 Mbps over the 5 GHz band1 . This, coupled with support for the Wi-Fi Multimedia™ (WMM) Quality of Service (QoS) feature, makes it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2610 to automatically prioritize network traffic according to the level of interactive streaming, such as HD movies or VoIP. The QoS feature can be adjusted through the DAP-2610 web GUI using a drop-down menu to select customized priority rules. Additionally, the DAP-2610 supports load balancing to ensure maximum performance by limiting the maximum number of users per access point.

Versatile Access Point Functionality

The DAP-2610 allows network administrators to deploy a highly manageable and extremely robust simultaneous dual-band wireless network. The DAP-2610 can provide optimal wireless coverage over either the 2.4 GHz (802.11b, 802.11g, and 802.11n) or the 5 GHz (802.11a, 802.11n, and 802.11ac) bands. The DAP-2610 can be ceiling mounted, wall mounted, or placed on a desktop to meet any wireless demands. For advanced installations, the DAP-2610 has integrated 802.3af Power over Ethernet (PoE) support, allowing the device to be installed in areas where power outlets are not readily available.
Product Type:   Wireless Access Point

Technical Information

Wireless LAN Standard:   IEEE 802.11ac
Frequency Band:   2.40 GHz
Frequency Band:   5 GHz
Total Number of Antennas:   2
Number of Internal Antennas:   2
Wireless Transmission Speed:   1.27 Gbit/s

Interfaces/Ports

Ethernet Technology:   Gigabit Ethernet
Number of Network (RJ-45) Ports:   1
PoE PD Port:   Yes
VGA:   No
HDMI:   No
USB:   No
Powerline:   No
Management Port:   No

Physical Characteristics

Form Factor:   Ceiling Mountable
Form Factor:   Desktop
Form Factor:   Wall Mountable
Height:   1.10" (28 mm)
Width:   6.69" (170 mm)
Depth:   6.69" (170 mm)
Weight (Approximate):   314 g

Miscellaneous

Country of Origin:   China
