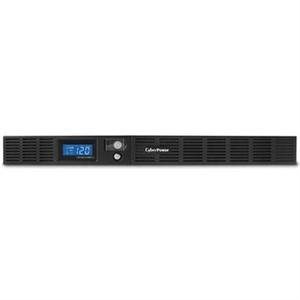

CyberPower UPS Systems OR700LCDRM1U Smart App LCD - Capacity: 700 VA / 400 W

UPC Code: 649532715046
Manufacturer Warranty: 3 YEARS
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exch-Call Cyberpower 877-297-6937
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   CyberPower Systems, Inc
Manufacturer Part Number:   OR700LCDRM1U
Manufacturer Website Address:   www.cyberpowersystems.com
Brand Name:   CyberPower
Product Series:   Smart App LCD UPS
Product Model:   OR700LCDRM1U
Product Name:   Smart App Intelligent LCD OR700LCDRM1U 700VA UPS
Marketing Information:

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR700LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR700LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR700LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

Product Type:   Line-interactive UPS

Technical Information

AVR:   Yes
Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   6 x NEMA 5-15R
Number of Battery & Surge Outlets:   4
Number of Surge-only Outlets:   2
Transfer Time:   8 ms
Dataline Protection:   RJ-45
Overload Protection:   Yes
EMI/RFI Noise Filter:   Yes
Energy Saving:   GreenPower UPS™ Bypass Technology
Application/Usage:   Network Device
Application/Usage:   Server
Application/Usage:   Telecommunication
Application/Usage:   Workstation

Power Description

Load Capacity:   700 VA
Input Voltage:   120 V AC
Input Voltage Range:   90 V AC - 140 V AC
Output Voltage:   120 V AC
Input Frequency:   63 Hz
Waveform Type:   Simulated Sine Wave
Surge Energy Rating:   1150 J

Management

Alarm:   Battery Mode

Controls/Indicators

Status Indicators:

On Unit:

• Power On
• Wiring Fault

LCD Panel:

• Input Voltage
• Output Voltage
• Battery Capacity
• Load Level
• Runtime
• On Battery
• Overload
• Silent Mode

Interfaces/Ports

Serial Port:   Yes
USB (HID Compliant) Port:   Yes

Battery Information

Number of Batteries:   2
Battery Characteristics:   Maintenance-free
Battery Chemistry:   Lead Acid
Battery Size:   6V
Battery Capacity:   8000 mAh
Backup/Run Time (Full Load):   3 Minute
Backup/Run Time (Half Load):   11 Minute
Typical Battery Recharge Time:   8 Hour
Replaceable Battery:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)
Maximum Storage Elevation:   50000 ft (15240000 mm)
Storage Relative Humidity:   0% - 95%

Physical Characteristics

Product Color:   Black
Form Factor:   Rack-mountable
Rack Height:   1U
Height:   1.75" (44.45 mm)
Width:   17.05" (433.07 mm)
Depth:   9.25" (234.95 mm)
Weight (Approximate):   8.39 kg

Miscellaneous

Package Contents:

• Smart App Intelligent LCD OR700LCDRM1U 700VA UPS
• Rack Ears (2)
• User Manual
• Power Management Software
• Warranty Card
• Serial Cable
• Phone Cable
• USB Cable

Additional Information:

• Replacement Battery Cartridge Quantity: 1
• Adjustable Voltage Range: 88 - 144 VAC
• Circuit Breaker: 15A
• Plug Style: Straight
• Automatic Voltage Regulation: Single Boost
• On Battery Frequency: 60 Hz ± 1%
• Output Power Factor: 0.6
• Overload Protection: Internal Circuitry Limiting
• Network Protection RJ45: 1-in / 1-Out (10/100/1000)
• LCD: Multifunction LCD
• Management Cable: USB Cable
• SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205
• Form Factor: Rackmount
• Material of Construction: Metal
• Operating Relative Humidity: 0 - 95 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)

Certifications & Standards:

• UL1778
• cUL107.1
• FCC Class B

Software Included:   PowerPanel® Business
Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
Additional Warranty Information:

CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.

Directly Connected Equipment Guarantee:   $300000Lifetime
