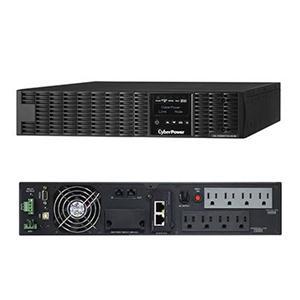

CyberPower UPS Systems OL1500RTXL2UN Smart App Online - Capacity: 1500 VA / 1350 W

UPC Code: 649532611782
Manufacturer Warranty: 3 YEARS
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exch-Call Cyberpower 877-297-6937
Master Pack Qty: 0
Country of Origin: CHINA

General Information

Manufacturer:   CyberPower Systems, Inc
Manufacturer Part Number:   OL1500RTXL2UN
Manufacturer Website Address:   www.cyberpowersystems.com
Brand Name:   CyberPower
Product Series:   Smart App Online UPS
Product Model:   OL1500RTXL2UN
Product Name:   OL1500RTXL2UN 1.5KVA Online UPS 2U sine wave LCD 100-125V RMCARD205 RT 3YR WTY
Marketing Information:

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

The CyberPower OL1500RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL1500RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

Product Type:   Double Conversion Online UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   8 x NEMA 5-15R
Transfer Time:   0 ns
Dataline Protection:   RJ-11
Dataline Protection:   RJ-45
Overload Protection:   Yes
EMI/RFI Noise Filter:   Yes
Energy Saving:   ECO Mode Efficiency >95%
Application/Usage:   Mission Critical Equipment
Application/Usage:   Network Equipment

Power Description

Load Capacity:   1.50 kVA
Input Voltage:   120 V AC
Input Voltage Range:   100 V AC - 125 V AC
Output Voltage:   100 V AC
Output Voltage:   110 V AC
Output Voltage:   115 V AC
Output Voltage:   120 V AC
Output Voltage:   125 V AC
Input Frequency:   70 Hz
Waveform Type:   Sine Wave
Surge Energy Rating:   1780 J

Management

Network Management:   SNMP/HTTP Remote Monitoring
Alarm:   Battery Mode
Alarm:   Low Battery
Alarm:   Overload
Alarm:   UPS Fault

Controls/Indicators

Status Indicators:

• Power On
• Line Mode
• Battery Mode
• Bypass Mode
• Fault
• Replace Battery

Interfaces/Ports

Serial Port:   Yes
Modem (RJ-11):   Yes
Network (RJ-45):   Yes
USB (HID Compliant) Port:   Yes
EPO Port:   Yes

Battery Information

Number of Batteries:   3
Battery Characteristics:   Maintenance-free
Battery Chemistry:   Lead Acid
Battery Size:   12V
Battery Capacity:   9000 mAh
Backup/Run Time (Full Load):   3.40 Minute
Backup/Run Time (Half Load):   11 Minute
Typical Battery Recharge Time:   4 Hour

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   -4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)
Maximum Storage Elevation:   50000 ft (15240000 mm)
Storage Relative Humidity:   0% - 95%
Sound Emission (A-Weighted):   38 dB(A)
Thermal Dissipation:   478 BTU/h

Physical Characteristics

Product Color:   Black
Form Factor:   Rack/Tower
Rack Height:   2U
Height:   3.50" (88.90 mm)
Width:   17" (431.80 mm)
Depth:   16.90" (429.26 mm)
Weight (Approximate):   17.96 kg

Miscellaneous

Package Contents:

• OL1500RTXL2UN 1.5KVA Online UPS 2U sine wave LCD 100-125V RMCARD205 RT 3YR WTY
• User Manual
• USB Cable
• Phone Cable
• Serial Cable
• Registration Card
• Mounting Hardware

Additional Information:

• Replacement Battery Cartridge Quantity: 1
• Smart Battery Management (SBM) Mode: Yes
• Circuit Breaker: 15A
• Cold Start: Yes
• Input Power Factor: 0.99
• Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
• Crest Factor: 3:1
• ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
• Harmonic Distortion: < 3% at Linear Load
• On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
• Output Power Factor: 0.9
• Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
• Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
• VA by Input Type: 1,500 (1.5 kVA) at 120, 125 V input
• Watts by Input Type: 1,350 (1.4 kW) at 120, 125 V input
• Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
• Dry Contacts: Yes
• Expansion Slot: Yes - RMCARD205 pre-installed
• LCD: Multifunction LCD
• LED Indicators: Power On (White)
• Management Cable: USB Cable
• Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
• Rotatable LCD Control Panel Option: Yes
• Serial Port: 1 Serial
• Upgradeable firmware: Yes
• Material of Construction: Metal
• Mounting Hardware: Yes
• ECO Mode Thermal Dissipation: 207 BTU/hr
• Operating Elevation: 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity: 0 - 90 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)
• Storage Elevation: 0 - 50000 ft (0 - 15239 m)

Certifications & Standards:

• UL 1778
• CSA C22.2 NO.107.3-05
• FCC DOC Class B

Software Included:   PowerPanel® Business
Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
Directly Connected Equipment Guarantee:   $400000Lifetime
