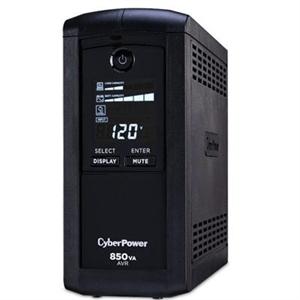

CyberPower UPS Systems CP850AVRLCD Intelligent LCD - Capacity: 850 VA / 510 W

UPC Code: 649532018505
Manufacturer Warranty: 3 YEARS
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exch-Call Cyberpower 877-297-6937
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   CyberPower Systems, Inc
Manufacturer Part Number:   CP850AVRLCD
Manufacturer Website Address:   www.cyberpowersystems.com
Brand Name:   CyberPower
Product Series:   Intelligent LCD UPS
Product Model:   CP850AVRLCD
Product Name:   Intelligent LCD CP850AVRLCD 850 VA Tower UPS
Marketing Information:

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP850AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP850AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP850AVRLCD comes with a three-year warranty (including coverage of batteries) and a $250,000 Connected Equipment Guarantee.

Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   9 x NEMA 5-15R
Number of Battery & Surge Outlets:   5
Number of Surge-only Outlets:   4
Dataline Protection:   RG-6
Dataline Protection:   RJ-45
Overload Protection:   Yes
Cord Length:   6 ft
Transfer Time:   4 ms
EMI/RFI Noise Filter:   Yes
Energy Saving:   GreenPower UPS™ Bypass Technology

Power Description

Load Capacity:   850 VA/510 W
Input Voltage:   120 V AC
Input Voltage Range:   90 V AC - 142 V AC
Output Voltage:   120 V AC
Input Frequency:   63 Hz
Waveform Type:   Simulated Sine Wave
Surge Energy Rating:   1080 J

Management

Alarm:   Battery Mode

Controls/Indicators

Status Indicators:   Power On

Interfaces/Ports

Serial Port:   Yes
USB:   Yes
USB (HID Compliant) Port:   Yes

Battery Information

Number of Batteries:   1
Battery Chemistry:   Lead Acid
Battery Size:   12V
Battery Capacity:   9000 mAh
Backup/Run Time (Full Load):   3 Minute
Backup/Run Time (Half Load):   11 Minute
Typical Battery Recharge Time:   8 Hour
Hot Swappable:   Yes
Replaceable Battery:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)
Maximum Storage Elevation:   60" (1524 mm)
Storage Relative Humidity:   0% - 95%

Physical Characteristics

Product Color:   Black
Height:   9" (228.60 mm)
Width:   3.90" (99.06 mm)
Depth:   10.20" (259.08 mm)
Form Factor:   Tower
Weight (Approximate):   6.80 kg

Miscellaneous

Package Contents:

• Intelligent LCD CP850AVRLCD 850 VA Tower UPS
• PowerPanel Personal Edition Software CD-ROM

Additional Information:

• Replacement Battery Cartridge Quantity : 1
• Plug Style : Right Angle - 45° Offset
• Automatic Voltage Regulation : Single Boost
• On Battery Frequency : 60 Hz ± 1%
• On Battery Voltage : 120 VAC ± 5%
• Under/Over-Voltage Correction : +10%
• Coax Protection RG6 COMPUTED : 1 in
• Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
• LCD : Multifunction LCD
• Management Cable : USB Cable
• Software (Free Download) : PowerPanel® Personal
• Operating Relative Humidity : 0 - 90 % (non-condensing)

Certifications & Standards:

• UL1778
• cUL 107.1
• FCC DOC Class B

Software Included:   PowerPanel Personal Edition Software
Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
Directly Connected Equipment Guarantee:   $250000 - Lifetime
