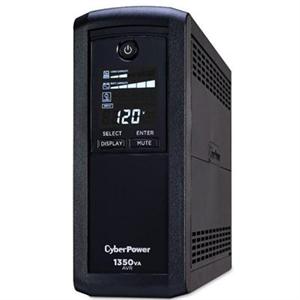

CyberPower UPS Systems CP1350AVRLCD Intelligent LCD - Capacity: 1350 VA / 815 W

UPC Code: 649532013500
Manufacturer Warranty: 3 YEARS
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exch-Call Cyberpower 877-297-6937
Master Pack Qty: 2
Country of Origin: TAIWAN

General Information

Manufacturer:   CyberPower Systems, Inc
Manufacturer Part Number:   CP1350AVRLCD
Manufacturer Website Address:   www.cyberpowersystems.com
Brand Name:   CyberPower
Product Series:   Intelligent LCD UPS
Product Model:   CP1350AVRLCD
Product Name:   CP1350AVRLCD
Marketing Information:

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1350AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1350AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1350AVRLCD comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   10 x NEMA 5-15R
Number of Battery & Surge Outlets:   5
Number of Surge-only Outlets:   5
Dataline Protection:   RJ-11
Dataline Protection:   RJ-45
Overload Protection:   Yes
Cord Length:   6 ft
Transfer Time:   4 ms
EMI/RFI Noise Filter:   Yes
Energy Saving:   GreenPower UPS™ Bypass Technology

Power Description

Load Capacity:   1.35 kVA/815 W
Input Voltage:   120 V AC
Input Voltage Range:   90 V AC - 142 V AC
Output Voltage:   120 V AC
Input Frequency:   63 Hz
Waveform Type:   Simulated Sine Wave
Surge Energy Rating:   1500 J

Management

Alarm:   Battery Mode

Controls/Indicators

Status Indicators:   Power On

Interfaces/Ports

Serial Port:   Yes
USB:   Yes
USB (HID Compliant) Port:   Yes

Battery Information

Number of Batteries:   2
Battery Chemistry:   Lead Acid
Battery Size:   12V
Battery Capacity:   9000 mAh
Backup/Run Time (Full Load):   4 Minute
Backup/Run Time (Half Load):   14 Minute
Typical Battery Recharge Time:   8 Hour
Replaceable Battery:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)
Maximum Storage Elevation:   50000 ft (15240000 mm)
Storage Relative Humidity:   0% - 95%

Physical Characteristics

Height:   9.80" (248.92 mm)
Width:   3.90" (99.06 mm)
Depth:   13.70" (347.98 mm)
Form Factor:   Mini-tower
Weight (Approximate):   10.16 kg

Miscellaneous

Package Contents:

• CP1350AVRLCD
• User's Manual
• USB Cable
• Software Download Card
• Registration Information Card

Additional Information:

• Replacement Battery Cartridge Quantity : 1
• Plug Style : Right Angle - 45° Offset
• Automatic Voltage Regulation : Single Boost
• On Battery Frequency : 60 Hz ± 1%
• On Battery Voltage : 120 VAC ± 5%
• Under/Over-Voltage Correction : +10%
• VA : 1350 VA
• Watts : 815 W
• Coax Protection RG6 COMPUTED : 1 in
• Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
• Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo)
• Surge Suppression : 1500
• Coax Protection RG6 COMPUTED : 1 in
• EMI/RFI Filtration COMPUTED : Yes
• Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
• Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo)
• LCD : Multifunction LCD
• Management Cable : USB Cable
• SNMP / HTTP Remote Monitoring : None
• Software (Free Download) : PowerPanel® Personal
• Operating Relative Humidity : 0 - 90 % (non-condensing)

Certifications & Standards:

• UL1778
• cUL 107 5th
• FCC Class B

Software Included:   PowerPanel Personal Edition
Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
Directly Connected Equipment Guarantee:   $500000 - Lifetime
