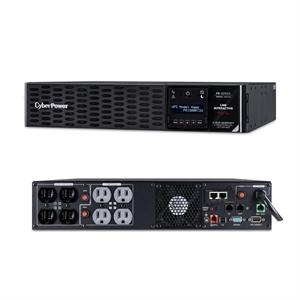

CyberPower PR1500RT2UN New Smart App Sinewave UPS Systems

UPC Code: 649532930555
Manufacturer Warranty: 3 Year Warranty
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exch-Call Cyberpower 877-297-6937
Master Pack Qty: 1
Country of Origin: PHILIPPINES

General Information

Manufacturer:   CyberPower Systems, Inc
Manufacturer Part Number:   PR1500RT2UN
Manufacturer Website Address:   www.cyberpowersystems.com
Brand Name:   CyberPower
Product Series:   New Smart App Sinewave UPS
Product Model:   PR1500RT2UN
Product Name:   Smart App Sinewave PR1500RT2UN 1.5KVA Tower/Rack Convertible UPS
Marketing Information:

The PR1500RT2UN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

The Smart App Sinewave PR1500RT2UN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RT2UN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model includes pre-installed remote management card RMCARD205, which provides remote management and configuration of the UPS via a standard web browser or network management system.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR1500RT2UN.

Product Condition:   New
Product Type:   Line-interactive UPS

Technical Information

AVR:   Yes
Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   8 x NEMA 5-15R
Number of Battery & Surge Outlets:   8
Number of Critical Load Outlets:   4
Transfer Time:   4 ms
Dataline Protection:   RJ-45
Overload Protection:   Yes
EMI/RFI Noise Filter:   Yes
Energy Saving:   GreenPower UPS™ Bypass Technology
Application/Usage:   Network Device
Application/Usage:   Server
Application/Usage:   Telecommunication
Application/Usage:   Workstation

Power Description

Load Capacity:   1.50 kVA
Input Voltage:   120 V AC
Input Voltage Range:   75 V AC - 149 V AC
Output Voltage:   100 V AC
Output Voltage:   110 V AC
Output Voltage:   120 V AC
Output Voltage:   125 V AC
Input Frequency:   63 Hz
Output Frequency:   60 Hz
Waveform Type:   Sine Wave
Surge Energy Rating:   2430 J

Management

Network Management:   SNMP/HTTP Remote Monitoring
Alarm:   Battery Mode
Alarm:   Low Battery
Alarm:   Over Charge
Alarm:   Overheat
Alarm:   Overload

Controls/Indicators

Status Indicators:

• Multifunction LCD Panel

LED Indicators:

• Power on
• Line mode
• Battery mode
• Fault
• Night mode
• Wiring Fault

Interfaces/Ports

Serial Port:   Yes
Network (RJ-45):   Yes
USB (HID Compliant) Port:   Yes
EPO Port:   Yes

Battery Information

DC System Voltage:   12 V DC
Number of Batteries:   4
Battery Characteristics:   Sealed
Battery Chemistry:   Lead Acid
Battery Size:   12V
Battery Capacity:   9000 mAh
Backup/Run Time (Full Load):   6.50 Minute
Backup/Run Time (Half Load):   18.20 Minute
Typical Battery Recharge Time:   3 Hour
Replaceable Battery:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)
Maximum Storage Elevation:   50000 ft (15240000 mm)
Storage Relative Humidity:   0% - 95%
Sound Emission (A-Weighted):   52.5 dB(A)
Thermal Dissipation:   75.10 BTU/h

Physical Characteristics

Product Color:   Black
Form Factor:   Rack/Tower
Rack Height:   2U
Height:   3.40" (86.36 mm)
Width:   17.10" (434.34 mm)
Depth:   16.20" (411.48 mm)
Weight (Approximate):   25.31 kg

Miscellaneous

Additional Information:

• Management Software: PowerPanel® Business Edition
• Automatic Voltage Regulation: Double boost, single buck
• Enclosure Construction: Metal
• Extended Battery Option: No
• Active PFC Compatible: Yes
• Circuit Breaker: 15A
• Dry Contacts: Yes
• Rated Power Factor: 1
• Replacement Battery Cartridge Quantity: 1
• Adjustable Voltage Range: 70 - 155 Vac
• Plug Style: Right Angle, 45° Offset Right
• Overload Protection: Internal Circuitry Limiting, Circuit Breaker
• Management Cable: USB Cable, EPO Cable
• Multifunction LCD Panel: 47 Settings (27 setup and control items + 20 status updates and log menus)
• Operating Relative Humidity: 0 - 95% (non-condensing)
• Operating Temperature: 32 °F to 104°F (0°C to 40°C)

Certifications & Standards:

• UL1778
• cUL107.1
• FCC Class B

Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   GreenPower UPS
Environmental Certification:   RoHS
Country of Origin:   Philippines

Warranty

Limited Warranty:   3 Year
Directly Connected Equipment Guarantee:   $400000Lifetime
