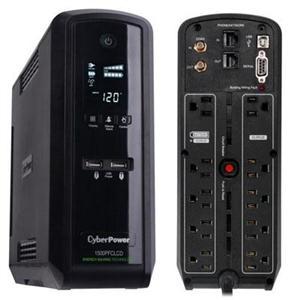

CyberPower PFC Sinewave CP1500PFCLCD - Capacity: 1500VA / 1000W

UPC Code: 649532609642
Manufacturer Warranty: 3 YEARS
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exch-Call Cyberpower 877-297-6937
Master Pack Qty: 0
Country of Origin: CHINA

General Information

Manufacturer:   CyberPower Systems, Inc
Manufacturer Part Number:   CP1500PFCLCD
Manufacturer Website Address:   www.cyberpowersystems.com
Brand Name:   CyberPower
Product Series:   PFC Sinewave UPS
Product Model:   CP1500PFCLCD
Product Name:   CP1500PFCLCD UPS 1500VA 1000W PFC compatible Pure sine wave
Marketing Information:   A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

The CP1500PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.

The CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500PFCLCD comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

Product Type:   Line-interactive UPS

Technical Information

AVR:   Yes
Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   12 x NEMA 5-15R
Number of Battery & Surge Outlets:   6
Number of Surge-only Outlets:   6
Overload Protection:   Yes
Cord Length:   5 ft
Transfer Time:   4 ms
EMI/RFI Noise Filter:   Yes
Energy Saving:   GreenPower UPS™ Bypass Technology

Power Description

Load Capacity:   1.50 kVA/1 kW
Input Voltage:   120 V AC
Input Voltage Range:   88 V AC - 144 V AC
Output Voltage:   120 V AC
Input Frequency:   63 Hz
Waveform Type:   Sine Wave
Surge Energy Rating:   1445 J

Management

Network Management:   SNMP/HTTP Remote Monitoring
Alarm:   Fault
Alarm:   Low Battery
Alarm:   On Battery
Alarm:   Overload

Controls/Indicators

Status Indicators:

• Power On
• Wiring Fault

Interfaces/Ports

Serial Port:   Yes
USB:   Yes
USB (HID Compliant) Port:   Yes

Battery Information

DC System Voltage:   12 V DC
Number of Batteries:   2
Battery Characteristics:   Maintenance-free
Battery Chemistry:   Lead Acid
Battery Size:   12V
Backup/Run Time (Full Load):   2.50 Minute
Backup/Run Time (Half Load):   10 Minute
Typical Battery Recharge Time:   8 Hour
Hot Swappable:   Yes
Replaceable Battery:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)

Physical Characteristics

Product Color:   Black
Height:   11" (279.40 mm)
Width:   3.90" (99.06 mm)
Depth:   14" (355.60 mm)
Form Factor:   Mini-tower
Weight (Approximate):   11.29 kg

Miscellaneous

Package Contents:

• CP1500PFCLCD UPS 1500VA 1000W PFC compatible Pure sine wave
• PowerPanel Personal Edition Software
• USB Cable
• User Manual
• Registration Card
• Coax Cable

Additional Information:

• Active PFC Compatible : Yes
• Replacement Battery Cartridge Quantity : 1
• Plug Style : Right Angle - 45° Offset
• On Battery Frequency : 60 Hz ± 1%
• Automatic Voltage Regulation : Single Boost
• On Battery Voltage : 120 VAC ± 5%
• USB Charge Port Quantity : 2
• USB Charge Port Type COMPUTED : 1 Type A
• USB Charge Port Amperage COMPUTED : 3.1 Amps (Shared)
• Outlets - Widely Spaced : 2
• Overload Protection : Internal Circuitry Limiting
• Under/Over-Voltage Correction : +11.5%
• Audible Alarms : Battery Mode
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• Management Cable : USB Cable
• Dry Contacts : Yes
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Elevation : 0 - 10000 ft (0 - 3048 m)

Certifications & Standards:

• UL1778
• cUL 107.3
• FCC DOC Class B

Software Included:   PowerPanel® Business
Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   Philippines

Warranty

Limited Warranty:   3 Year
Directly Connected Equipment Guarantee:   $500000 - Lifetime
