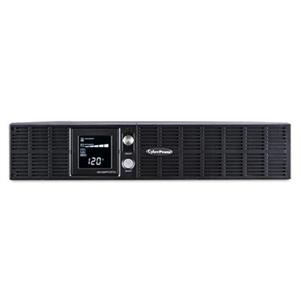

CyberPower OR1500PFCRT2U PFC Sinewave UPS System 1500VA 900W Rack/Tower PFC compatible Pure sine wave

UPC Code: 649532609581
Manufacturer Warranty: 3 YEARS
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exch-Call Cyberpower 877-297-6937
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   CyberPower Systems, Inc
Manufacturer Part Number:   OR1500PFCRT2U
Manufacturer Website Address:   www.cyberpowersystems.com
Brand Name:   CyberPower
Product Series:   PFC Sinewave UPS
Product Model:   OR1500PFCRT2U
Product Name:   OR1500PFCRT2U PFC Sinewave UPS System 1500VA 900W Rack/Tower PFC compatible Pure sine wave
Marketing Information:   The CyberPower OR1500PFCRT2U PFC Sinewave UPS System with sine wave output and multifunction LCD safeguards networking hardware, networked-based devices, small office servers, workstations and telecom equipment that use conventional and Active Power Factor Correction (PFC) power supplies.

The OR1500PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

This UPS is patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.

• Experience higher efficiency with lower energy cost
• 1500 VA load capacity provides sufficient backup during power failures
• Prevent critical data loss by staying powered during a blackout with up to 1050 W load capacity
• Up to 7.7 minute runtime on full load to preserve critical data from power shortage interruptions

Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   8 x NEMA 5-15R
Dataline Protection:   RJ-11
Dataline Protection:   RJ-45
Protection Type:   Over Loading
Emergency Power OFF:   Yes
Transfer Time:   4 ms
EMI/RFI Noise Filter:   Yes

Power Description

Load Capacity:   1.50 kVA/1.05 kW
Input Voltage:   110 V AC
Output Voltage:   120 V AC
Waveform Type:   Sine Wave

Controls/Indicators

Status Indicators:

• Power On
• Wiring Fault

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Number of Batteries:   4
Battery Characteristics:   Maintenance-free
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   7.70 Minute
Backup/Run Time (Half Load):   17 Minute
Typical Battery Recharge Time:   10 Hour
Hot Swappable:   Yes

Physical Characteristics

Height:   3.50" (88.90 mm)
Width:   17.01" (432.05 mm)
Depth:   15.32" (389.13 mm)
Rack Height:   2U
Form Factor:   Rack/Tower
Weight (Approximate):   22.95 kg

Miscellaneous

Package Contents:

• OR1500PFCRT2U PFC Sinewave UPS System 1500VA 900W Rack/Tower PFC compatible Pure sine wave
• USB A-B Cable
• User's Manual
• Software Download Card
• Registration Info Card

Additional Information:

• Input Voltage Range: 88Vac - 139Vac
• Input Frequency: 60Hz ±3Hz
• Automatic Voltage Regulation: Yes, +14%
• Output Frequency: 60Hz ±1%
• Overload Protection: Internal Circuitry Limiting
• LCD: Internal Circuitry Limiting
• Alarm: On Battery, Low Battery, Overload
• Battery Size: 12V / 7Ah
• Replacement Battery Quantity: 1
• Replacement Battery Model: RB1270X4G
• Connected Equipment Guarantee: Lifetime
• CEG Amount: $300,000

Certifications & Standards:

• UL 1778 5th Ed
• cUL
• FCC Class A

Software Included:   PowerPanel Business Edition Software
Energy Star:   No
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
