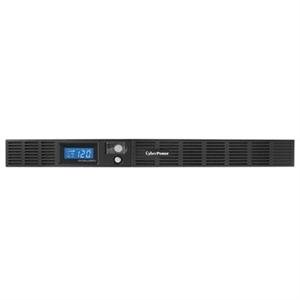

CyberPower OR1500LCDRM1U Smart App LCD UPS Systems

UPC Code: 649532715060
Manufacturer Warranty: 3 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exch-Call Cyberpower 877-297-6937
Master Pack Qty: 1
Country of Origin: PHILIPPINES

General Information

Manufacturer:   CyberPower Systems, Inc
Manufacturer Part Number:   OR1500LCDRM1U
Manufacturer Website Address:   www.cyberpowersystems.com
Brand Name:   CyberPower
Product Series:   Smart App LCD UPS
Product Model:   OR1500LCDRM1U
Product Name:   Smart App OR1500LCDRM1U 1500VA UPS
Marketing Information:

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

Product Type:   Line-interactive UPS

Technical Information

AVR:   Yes
Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   6 x NEMA 5-15R
Number of Battery & Surge Outlets:   4
Number of Surge-only Outlets:   2
Transfer Time:   8 ms
Dataline Protection:   RJ-11
Dataline Protection:   RJ-45
Overload Protection:   Yes
EMI/RFI Noise Filter:   Yes
Energy Saving:   GreenPower UPS™ Bypass Design

Power Description

Load Capacity:   1.50 kVA
Input Voltage:   120 V AC
Input Voltage Range:   90 V AC - 140 V AC
Output Voltage:   120 V AC
Input Frequency:   63 Hz
Output Frequency:   60 Hz
Waveform Type:   Simulated Sine Wave
Surge Energy Rating:   1150 J

Management

Network Management:   SNMP Manageable
Alarm:   Battery Mode

Controls/Indicators

Status Indicators:

• Power On
• Multifunction LCD

Interfaces/Ports

Serial Port:   Yes
USB:   Yes
USB (HID Compliant) Port:   Yes

Battery Information

DC System Voltage:   6 V DC
Number of Batteries:   4
Battery Chemistry:   Lead Acid
Battery Size:   6V
Battery Capacity:   9000 mAh
Backup/Run Time (Full Load):   2 Minute
Backup/Run Time (Half Load):   11 Minute
Typical Battery Recharge Time:   8 Hour
Replaceable Battery:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)
Maximum Storage Elevation:   50000 ft (15240000 mm)

Physical Characteristics

Form Factor:   Rack-mountable
Rack Height:   1U
Height:   1.75" (44.45 mm)
Width:   17.05" (433.07 mm)
Depth:   15.60" (396.24 mm)
Weight (Approximate):   14.97 kg

Miscellaneous

Additional Information:

• Replacement Battery Cartridge Quantity | 1
• Adjustable Voltage Range | 88 - 144 VAC
• Circuit Breaker | 15A
• Plug Style | Straight
• Automatic Voltage Regulation | Single Boost
• Overload Protection | Internal Circuitry Limiting
• LCD | Multifunction LCD
• Management Cable | USB Cable
• Serial Port | 1 Dry Contact
• SNMP / HTTP Remote Monitoring | Yes - with optional RMCARD205
• Material of Construction | Metal
• Operating Relative Humidity | 0 - 95 % (non-condensing)
• Operating Temperature | 32 - 104 °F (0 - 40 °C)
• Storage Relative Humidity | 0 - 95% (non-condensing)

Certifications & Standards:

• UL1778
• cUL 107.1
• FCC DOC Class B

Software Included:   PowerPanel® Business
Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   RoHS

Warranty

Limited Warranty:   3 Year
Directly Connected Equipment Guarantee:   $300000Lifetime
