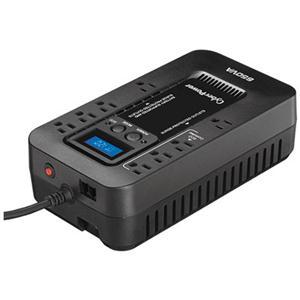

CyberPower EC650LCD Ecologic UPS Systems

UPC Code: 649532607594
Manufacturer Warranty: 3 YEARS
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exch-Call Cyberpower 877-297-6937
Master Pack Qty: 0
Country of Origin: CHINA

General Information

Manufacturer:   CyberPower Systems, Inc
Manufacturer Part Number:   EC650LCD
Manufacturer Website Address:   www.cyberpowersystems.com
Brand Name:   CyberPower
Product Series:   Ecologic UPS
Product Model:   EC650LCD
Product Name:   EC650LCD ECOLOGIC UPS
Marketing Information:

A compact UPS with standby topology, the CyberPower Ecologic EC650LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC650LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime. The EC650LCD comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.

Product Type:   Standby UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   8 x NEMA 5-15R
Number of Battery & Surge Outlets:   4
Number of Surge-only Outlets:   4
Overload Protection:   Yes
Cord Length:   5 ft
Transfer Time:   4 ms
EMI/RFI Noise Filter:   Yes
Energy Saving:   GreenPower UPS™ Bypass Technology

Power Description

Load Capacity:   650 VA/390 W
Input Voltage:   120 V AC
Output Voltage:   120 V AC
Input Frequency:   63 Hz
Waveform Type:   Simulated Sine Wave
Surge Energy Rating:   526 J

Management

Alarm:   Battery Mode

Controls/Indicators

Status Indicators:   Power On

Interfaces/Ports

USB:   Yes
USB (HID Compliant) Port:   Yes

Battery Information

Number of Batteries:   1
Battery Characteristics:   Maintenance-free, Sealed
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   2.80 Minute
Backup/Run Time (Half Load):   8.40 Minute
Typical Battery Recharge Time:   8 Hour

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)
Maximum Storage Elevation:   50000 ft (15240000 mm)
Storage Relative Humidity:   0% - 95%

Physical Characteristics

Product Color:   Black
Height:   3.10" (78.74 mm)
Width:   10.60" (269.24 mm)
Depth:   5.90" (149.86 mm)
Form Factor:   Compact
Weight (Approximate):   2.90 kg

Miscellaneous

Package Contents:

• EC650LCD ECOLOGIC UPS
• PowerPanel Personal Edition Software CD
• USB Cable
• User Manual
• Registration Card

Additional Information:

• Field-serviceable Battery : Replaceable by qualified technician
• Nominal Input Voltage : 120 VAC
• Plug Style : Right Angle - 45° Offset
• On Battery Frequency : 50/60 Hz ± 1% (auto-sensing)
• On Battery Voltage : 120 VAC ± 5%
• Outlets - Eco Controlled : 3
• Outlets - Widely Spaced : 2
• LCD : Multifunction LCD
• Management Cable : USB Cable
• Software (Free Download) : PowerPanel® Personal
• Keyhole Mounting Slots : Yes
• Operating Relative Humidity : 0 - 90 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)

Certifications & Standards:

• UL1778
• cUL CSA C22.2 No.107.3-05
• FCC/DoC Class B

Software Included:   PowerPanel Personal Edition
Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
Directly Connected Equipment Guarantee:   $100000 - Lifetime
