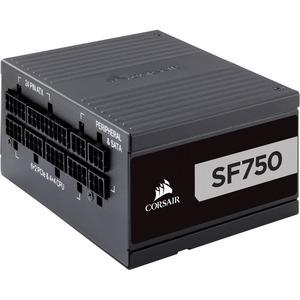

Corsair SF750 Power Supply

UPC Code: 843591075527
Manufacturer Warranty: 3 YEARS
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: Past Exch.-Call Vendor 888-222-4346 x701
Master Pack Qty: 33
Country of Origin: CHINA

General Information

Manufacturer:   Corsair
Manufacturer Part Number:   CP-9020186-NA
Manufacturer Website Address:   www.corsair.com
Brand Name:   Corsair
Product Series:   SF
Product Model:   SF750
Product Name:   SF750 Power Supply
Marketing Information:

AN UNPRECEDENTED 750 WATT SFX PSU

The most powerful SFX power supply in the market, perfect for the most power-dense small-form-factor PCs.

80 PLUS PLATINUM CERTIFIED

The SF750 Platinum delivers power at up to 92% efficiency, lowering energy consumption, noise, temperatures, and your power bill.

JAPANESE 105°C CAPACITORS

Using high-end electrolytic capacitors, the SF750 Platinum offers the unwavering power and long-term reliability you demand from a CORSAIR power supply.

ZERO RPM FAN MODE

The SF750 Platinum's 92mm cooling fan doesn't spin until you need it, for near-silent operation at low and medium loads.

92MM PWM LOW NOISE COOLING FAN

Utilizing PWM instead of the standard DC voltage control, the SF750 Platinum keeps noise low and delivers precise fan speed. The SF750 Platinum also utilizes a copper alloy heatsink, ensuring optimal thermal performance.

FULLY MODULAR CABLES

SF Platinum Series power supplies come equipped with premium, individually sleeved cables featuring a flexible paracord sleeve, ready to fit right into your new high-end PC. The individually sleeved cables also make routing and cable management a breeze, with a lower profile and improved flexibility.

SFX-TO-ATX BRACKET INCLUDED

SF Platinum Series power supplies include an SFX-to-ATX power supply adapter bracket enabling installation into any ATX compatible case.

SEVEN-YEAR WARRANTY

CORSAIR offers a seven-year warranty on all SF Platinum Series power supplies, your guarantee of reliable operation that will last across several system builds. If you need help, CORSAIR customer service and tech support are always on hand.

Product Type:   Power Supply

Technical Information

Specification Compliance:   ATX12V/EPS12V
Efficiency:   92%
Number of Fans:   1
Modular:   Yes

Power Description

Number of +12V Rails:   1
Input Voltage:   120 V AC
Input Voltage:   230 V AC
Output Voltage:   12 V DC @ 300 mA
Output Voltage:   12 V DC @ 62.5 A
Output Voltage:   3.3 V DC @ 20 A
Output Voltage:   5 V DC @ 2.5 A
Output Voltage:   5 V DC @ 20 A
Output Power:   750 W

Physical Characteristics

Form Factor:   Internal
Height:   3.94" (100 mm)
Width:   2.48" (63 mm)
Depth:   4.92" (125 mm)
Weight (Approximate):   898.1 g

Miscellaneous

Package Contents:

• SF750 Power Supply
• AC Power cord
• DC Modular Cable Set
• DC Modular Cable Storage Bag
• Cable Ties
• Corsair Case Badge
• User Manual

Environmentally Friendly:   Yes
Environmental Certification:   80 Plus Platinum
Country of Origin:   China

Warranty

Limited Warranty:   7 Year
