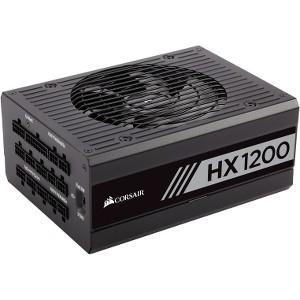

Corsair HX Series HX1200 - 1200 Watt 80 PLUS Platinum Certified Fully Modular PSU

UPC Code: 843591093552
Manufacturer Warranty: 10 YEARS
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: Past Exch.-Call Vendor 888-222-4346 x701
Master Pack Qty: 2
Country of Origin: CHINA

General Information

Manufacturer:   Corsair
Manufacturer Part Number:   CP-9020140-NA
Manufacturer Website Address:   www.corsair.com
Brand Name:   Corsair
Product Series:   HX
Product Model:   HX1200
Product Name:   HX Series HX1200 - 1200 Watt 80 PLUS Platinum Certified Fully Modular PSU
Marketing Information:

Platinum efficiency, fully modular and virtually silent

CORSAIR HX series power supplies give you extremely tight voltage regulation, quiet operation, Platinum-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they're a great choice for high performance PCs where reliability is essential.

Quiet, efficient operation

80 PLUS Platinum efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads.

100% Japanese 105°C capacitors

Premium internal components ensure solid power delivery and long term reliability.

Zero RPM Fan Mode

Since the fan doesn't turn on until it's needed, you'll enjoy virtually silent operation at low and medium loads.

Ten year warranty

Your guarantee of reliable operation that will last across several system builds.

Power In Your Hands

Toggle single +12V rail or multi +12V rail mode. In the "SINGLE" position, the full output capability of the power supply's +12V rail is available to any and all connectors, while in the "MULTIPLE" position, each individual connector has Over-Current Protection so no more than 40A of current can be delivered on any given cable.

Easy Installation

The fully modular DC cables make builds and upgrades easy, with clean, great-looking results.

Product Type:   Power Supply

Technical Information

Specification Compliance:   ATX12V/EPS12V
Efficiency:   90%
Number of Fans:   1
Modular:   Yes

Power Description

Number of +12V Rails:   8
Input Voltage:   120 V AC
Input Voltage:   230 V AC
Output Voltage:   12 V DC @ 40 A
Output Voltage:   12 V DC @ 800 mA
Output Voltage:   3.3 V DC @ 30 A
Output Voltage:   5 V DC @ 3.5 A
Output Voltage:   5 V DC @ 30 A
Output Power:   1.20 kW

Physical Characteristics

Form Factor:   Internal
Height:   3.39" (86 mm)
Width:   5.91" (150 mm)
Depth:   7.87" (200 mm)
Weight (Approximate):   2.30 kg

Miscellaneous

Package Contents:

• HX Series HX1200 - 1200 Watt 80 PLUS Platinum Certified Fully Modular PSU
• Power Cord
• Mounting Screws
• Cable Ties
• Case Badge
• User Manual

Certifications & Standards:

T?V

Environmentally Friendly:   Yes
Environmental Certification:   80 Plus Platinum
Environmental Certification:   China RoHS
Environmental Certification:   REACH
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   China

Warranty

Limited Warranty:   10 Year
