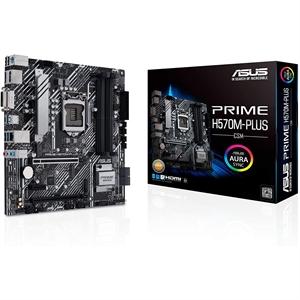

Asus Prime H570M-PLUS/CSM Desktop Motherboard - Intel H570 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Micro ATX

UPC Code: 195553127035
Manufacturer Warranty: 3 YEAR
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exch-Call Asus 888-678-3688
Master Pack Qty: 10
Country of Origin: CHINA

General Information

Manufacturer:   ASUS Computer International
Manufacturer Part Number:   PRIME H570M-PLUS/CSM
Manufacturer Website Address:   www.asus.com
Brand Name:   Asus
Product Line:   Prime
Product Model:   H570M-PLUS/CSM
Product Name:   Prime H570M-PLUS/CSM Desktop Motherboard
Marketing Information:

Intel® H570 (LGA 1200) micro ATX motherboard with PCIe® 4.0, 8 power stages, DisplayPort™, HDMI®, DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®, Intel® 1 Gb Ethernet, Thunderbolt™ 4 header support, and Aura Sync RGB lighting

• Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors
• Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
• Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
• Ultrafast connectivity: PCIe® 4.0, Dual M.2, Intel® 1 Gb Ethernet, USB 3.2 Gen 2 Type-C® and Thunderbolt™ 4 header support

Product Type:   Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel
Chipset Model:   H570
Total Processor Supported:   1
Processor Socket:   Socket LGA-1200
Processor Supported:   Celeron
Processor Supported:   Core i3
Processor Supported:   Core i5
Processor Supported:   Core i7
Processor Supported:   Core i9
Processor Supported:   Pentium Gold

Memory

Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR4 SDRAM
Memory Speed Supported:   2133 MHz
Memory Speed Supported:   2400 MHz
Memory Speed Supported:   2666 MHz
Memory Speed Supported:   2800 MHz
Memory Speed Supported:   2933 MHz
Memory Speed Supported:   3200 MHz
Memory Speed Supported:   3333 MHz
Memory Speed Supported:   3466 MHz
Memory Speed Supported:   3600 MHz
Memory Speed Supported:   3733 MHz
Memory Speed Supported:   4000 MHz
Memory Speed Supported:   4266 MHz
Memory Speed Supported:   4400 MHz
Memory Speed Supported:   4600 MHz
Intel Optane Memory Ready:   Yes

I/O Controller

Controller Type:   Serial ATA/600

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Gigabit Ethernet:   Yes

I/O Expansions

Number of Total Expansion Slots:   3
Total Number of PCI Express Slots:   3
Number of PCI Express x1 Slots:   1
Number of PCI Express x16 Slots:   2

Interfaces/Ports

Total Number of USB Ports:   6
Number of USB 2.0 Ports:   2
Number of USB 3.2 Ports:   1
Number of USB 3.2 Gen 1 Ports:   2
Number of USB 3.2 Gen 2 Type-A Ports:   1
HDMI:   Yes
DisplayPort:   Yes
DVI:   Yes
Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   6
Number of M.2 Interfaces:   2
Total Number of Onboard USB Ports:   8
Number of Onboard USB 2.0 Ports:   4
Number of Onboard USB 3.2 Ports:   4

Physical Characteristics

Form Factor:   Micro ATX
Width:   9.61" (244 mm)
Depth:   9.61" (244 mm)

Miscellaneous

Package Contents:

• Prime H570M-PLUS/CSM Desktop Motherboard
• 2 x SATA 6Gb/s Cables
• 1 x M.2 Rubber Package
• 1 x I/O Shield
• 1 x M.2 SSD Screw Package
• 1 x M.2 Key E Screw Package
• 1 x Support DVD
• 1 x User Manual

Brand Compatibility:   Intel
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   Switzerland

Warranty

Limited Warranty:   3 Year
