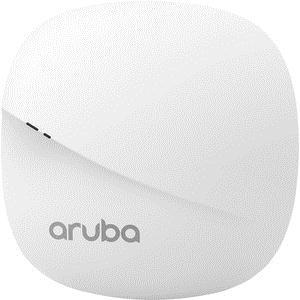

Aruba AP-303 IEEE 802.11ac 1.20 Gbit/s Wireless Access Point

UPC Code: 190017232591
Manufacturer Warranty: 3 Year
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exch Call 844-806-3425
Master Pack Qty: 0
Country of Origin: UNITED STATES

General Information

Manufacturer:   Hewlett Packard Enterprise
Manufacturer Part Number:   JZ320A
Manufacturer Website Address:   www.hpe.com
Brand Name:   Aruba
Product Series:   303
Product Model:   AP-303
Product Name:   AP-303 Wireless Access Point
Marketing Information:   The affordable mid-range Aruba 303 Series campus access point delivers high performance 802.11ac with MU-MIMO (Wave 2) for medium density enterprise environments. With the integrated BLE and supporting 802.3af power, the Aruba 303 Series AP enables enterprises to improve their work efficiency and productivity with the lowest TCO.

The compact Aruba 303 Series AP delivers a maximum concurrent data rate of 867 Mbps in the 5GHz band and 300 Mbps in the 2.4GHz band (for an aggregate peak data rate of 1.2Gbps). Featuring 2x2:2SS, the Aruba 303 is designed for medium device density environments, such as schools, retail branches, warehouses, hotels and enterprise offices, where the environment is cost sensitive.

The 303 Series AP has an integrated Bluetooth Low-Energy (BLE) radio, which can be used as an Aruba beacon for advanced locationing, indoor wayfinding, asset tracking, and to enable proximity-based push notification services. The integrated beacon radio also enables the remote management of battery-powered and other standalone beacons in a large-scale network of Aruba beacons. It enables businesses to leverage mobility context to develop applications that will deliver an enhanced user experience and increase the value of the wireless network for organizations.

Product Type:   Wireless Access Point

Technical Information

Wireless LAN Standard:   IEEE 802.11ac
Frequency Band:   2.40 GHz
Frequency Band:   5 GHz
Total Number of Antennas:   2
Number of Internal Antennas:   2
Wireless Transmission Speed:   1.20 Gbit/s
MIMO Technology:   Yes
Beamforming Technology:   Yes

Interfaces/Ports

Ethernet Technology:   Gigabit Ethernet
Number of Network (RJ-45) Ports:   1
PoE PD Port:   Yes
VGA:   No
HDMI:   No
USB:   Yes
Powerline:   No
Management Port:   Yes

Physical Characteristics

Form Factor:   Ceiling Mountable
Form Factor:   Wall Mountable
Height:   1.38" (35 mm)
Width:   5.91" (150 mm)
Depth:   5.91" (150 mm)
Weight (Approximate):   260 g
