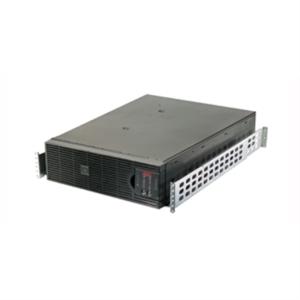

APC Smart-UPS RT 6000VA Rack-Mountable UPS

UPC Code: 731304258827
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: All Defects Call APC 800-890-4272
Master Pack Qty: 1
Country of Origin: TAIWAN

General Information

Manufacturer:   Schneider Electric SA
Manufacturer Part Number:   SURTD6000RMXLP3U
Manufacturer Website Address:   www.schneider-electric.com
Brand Name:   APC by Schneider Electric
Product Line:   Smart-UPS
Product Series:   RT
Product Name:   Smart-UPS RT 6000VA Rack-Mountable UPS
Marketing Information:

Smart-UPS RT 6000VA Rack-Mountable UPS supplies utility power to the connected loads in the event of a UPS overload condition or fault. Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Product Type:   Double Conversion Online UPS

Technical Information

Plug/Connector Type:   NEMA L14-30P
Receptacle Type:   NEMA 5-20R
Receptacle Type:   NEMA L14-30R
Receptacle Type:   NEMA L6-30R
Receptacle Detail:   1 x NEMA 5-20R
Receptacle Detail:   1 x NEMA L6-30R
Receptacle Detail:   4 x NEMA L14-30R
Bypass Switch:   Automatic
Bypass Switch:   Manual
Emergency Power OFF:   Yes

Power Description

Load Capacity:   6 kVA/4.20 kW
Input Voltage:   220 V AC
Output Voltage:   120 V AC
Output Voltage:   208 V AC
Waveform Type:   Sine Wave

Interfaces/Ports

Serial Port:   Yes

Battery Information

Battery Characteristics:   Maintenance-free, Sealed, Spill-proof
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   4.40 Minute
Backup/Run Time (Half Load):   14.10 Minute
Typical Battery Recharge Time:   2.50 Hour
Hot Swappable:   Yes

Physical Characteristics

Product Color:   Black
Height:   5.10" (129.54 mm)
Width:   17" (431.80 mm)
Depth:   26" (660.40 mm)
Rack Height:   3U
Form Factor:   Rack-mountable
Weight (Approximate):   57.94 kg

Miscellaneous

Package Contents:

Smart-UPS RT 6000VA Rack-Mountable UPS

CD with software

Rack mounting support rails

Removable support feet

Smart UPS signalling RS-232 cable

User manual

Certifications & Standards:

• CSA
• FCC Part 15 Class A
• UL 1778
• UL 1449
• CE
• C-Tick

Environmentally Friendly:   Yes

Warranty

Limited Warranty:   2 Year
