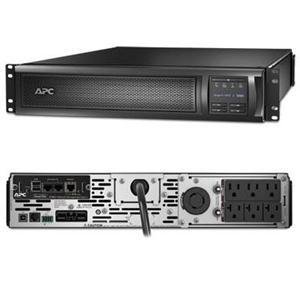

APC by Schneider Electric Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS

UPC Code: 731304268543
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: All Defects Call APC 800-890-4272
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   Schneider Electric SA
Manufacturer Part Number:   SMX3000RMLV2UNC
Manufacturer Website Address:   www.schneider-electric.com
Brand Name:   APC by Schneider Electric
Product Line:   Smart-UPS
Product Series:   X
Product Model:   SMX3000RMLV2UNC
Product Name:   Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS
Marketing Information:

Marketing Information from the Manufacturer

Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA L5-30P
Receptacle Type:   NEMA 5-15R
Receptacle Type:   NEMA 5-20R
Receptacle Type:   NEMA L5-30R
Receptacle Detail:   1 x NEMA L5-30R
Receptacle Detail:   3 x NEMA 5-15R
Receptacle Detail:   3 x NEMA 5-20R
Emergency Power OFF:   Yes
Transfer Time:   4 ms

Power Description

Load Capacity:   2.88 kVA/2.70 kW
Input Voltage:   110 V AC
Output Voltage:   120 V AC
Waveform Type:   Sine Wave

Management

Network Management:   SNMP Manageable

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Battery Characteristics:   Spill-proof, Maintenance-free
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   6 Minute
Backup/Run Time (Half Load):   18 Minute
Typical Battery Recharge Time:   3 Hour
Hot Swappable:   Yes

Physical Characteristics

Product Color:   Black
Height:   3.35" (85 mm)
Width:   17.01" (432 mm)
Depth:   26.26" (667 mm)
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   38.45 kg

Miscellaneous

Package Contents:

Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS

CD with software

Documentation CD

Installation guide

Rack mounting brackets

Rack mounting hardware

Rack mounting support rails

Removable support feet

Smart UPS signalling RS-232 cable

USB cable

Web/SNMP management card

Certifications & Standards:

• UL 1449
• BSMI
• CSA
• EN 50091-2
• EN 55022 Class A
• FCC Part 15 Class A
• NOM
• TUV
• UL 1778
• VCCI Class A

Environmentally Friendly:   Yes
Environmental Certification:   REACH
Environmental Certification:   RoHS

Warranty

Limited Warranty:   3 Year
