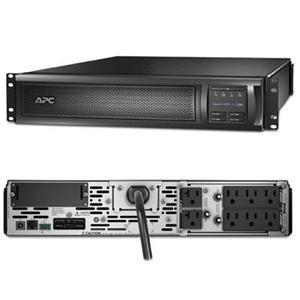

APC by Schneider Electric Smart-UPS X SMX2200RMLV2U 2200 VA Rack-mountable UPS

2U Rack-mountable - 3 Hour Recharge - 10 Minute Stand-by - 110 V AC Input - 120 V AC Output - 2 x NEMA 5-20R, 6 x NEMA 5-15R
MFR #: SMX2200RMLV2U
UPC: 731304268567
Shipping Wight: 100 lb
Our Price: $3,915.00 CAD
Add to Wish List
Availability: In Stock
Est. ships: In 2~3 Business Day

Product Overview

UPC Code: 731304268567
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: All Defects Call APC 800-890-4272
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   Schneider Electric SA
Manufacturer Part Number:   SMX2200RMLV2U
Manufacturer Website Address:   www.schneider-electric.com
Brand Name:   APC by Schneider Electric
Product Line:   Smart-UPS
Product Series:   X
Product Model:   SMX2200RMLV2U
Product Name:   Smart-UPS X SMX2200RMLV2U 2200 VA Rack-mountable UPS
Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA L5-30P
Receptacle Type:   NEMA 5-15R
Receptacle Type:   NEMA 5-20R
Receptacle Detail:   2 x NEMA 5-20R
Receptacle Detail:   6 x NEMA 5-15R
Emergency Power OFF:   Yes
Transfer Time:   4 ms

Power Description

Load Capacity:   2.20 kVA/1.98 kW
Input Voltage:   110 V AC
Output Voltage:   120 V AC
Waveform Type:   Sine Wave

Interfaces/Ports

Serial Port:   Yes
USB:   Yes
Total Number of Expansion Slots:   1

Battery Information

Battery Characteristics:   Maintenance-free, Sealed, Spill-proof
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   10 Minute
Backup/Run Time (Half Load):   25 Minute
Typical Battery Recharge Time:   3 Hour
Hot Swappable:   Yes

Physical Characteristics

Product Color:   Black
Height:   3.36" (85.34 mm)
Width:   17" (431.80 mm)
Depth:   26.26" (667 mm)
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   38.37 kg

Miscellaneous

Package Contents:
  • Smart-UPS X SMX2200RMLV2U 2200 VA Rack-mountable UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Removable support feet
  • Smart UPS signalling RS-232 cable
  • USB cable

    • Certifications & Standards:
    • BSMI
    • CSA
    • EN 50091-2
    • EN 55022 Class A
    • FCC Part 15 Class A
    • NOM
    • TUV
    • UL 1778
    • VCCI Class A
    • UL 1449

    Environmentally Friendly:   Yes
    Environmental Certification:   REACH
    Environmental Certification:   RoHS

    Warranty

    Limited Warranty:   3 Year
