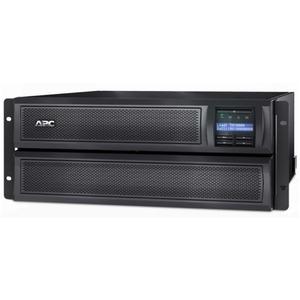

APC by Schneider Electric Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V

UPC Code: 731304292630
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: All Defects Call APC 800-890-4272
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   Schneider Electric SA
Manufacturer Part Number:   SMX3000HVT
Manufacturer Website Address:   www.schneider-electric.com
Brand Name:   APC by Schneider Electric
Product Line:   Smart-UPS
Product Series:   X
Product Name:   Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
Marketing Information:

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   British BS1363A
Plug/Connector Type:   IEC 60320 C20
Plug/Connector Type:   SCHUKO CEE 7 EU1-16P
Receptacle Type:   IEC 60320 C13
Receptacle Type:   IEC 60320 C19
Receptacle Type:   NEMA L6-20R
Receptacle Detail:   2 x IEC 60320 C19
Receptacle Detail:   2 x NEMA L6-20R
Receptacle Detail:   4 x IEC 60320 C13
Protection Type:   Surge
Emergency Power OFF:   Yes
Cord Length:   6 ft

Power Description

Load Capacity:   3 kVA/2.70 kW
Input Voltage:   208 V AC
Output Voltage:   208 V AC
Waveform Type:   Sine Wave
Surge Energy Rating:   645 J
Circuit Breaker:   Yes

Management

Alarm:   Configurable Delay
Alarm:   Low Battery
Alarm:   On Battery

Controls/Indicators

Status Indicators:   LED status display with On Line : On Battery : Replace Battery and Overload indicators

Interfaces/Ports

Serial Port:   Yes
USB:   Yes
Total Number of Expansion Slots:   1

Battery Information

Number of Batteries:   1
Battery Characteristics:   Maintenance-free, Sealed, Spill-proof
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   6.30 Minute
Backup/Run Time (Half Load):   15.70 Minute
Typical Battery Recharge Time:   3 Hour
Hot Swappable:   Yes

Environmental Conditions

Maximum Operating Temperature:   113°F (45°C)
Sound Emission (A-Weighted):   55 dB(A)
Thermal Dissipation:   184 BTU/h

Physical Characteristics

Product Color:   Black
Height:   17" (431.80 mm)
Width:   7" (177.80 mm)
Depth:   19" (482.60 mm)
Rack Height:   4U
Form Factor:   Rack-mountable
Weight (Approximate):   38.56 kg

Miscellaneous

Package Contents:

Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V

CD with software

Documentation CD

Rack mounting brackets

Smart UPS signalling RS-232 cable

USB cable

User manual

Certifications & Standards:

• C-tick
• CE
• CSA
• EN 50091-1
• EN 50091-2
• EN 60950
• FCC Part 15 Class A
• GOST
• IRAM
• UL 1778
• VDE
• UL 1449

Environmentally Friendly:   Yes
Environmental Certification:   REACH
Environmental Certification:   RoHS

Warranty

Limited Warranty:   3 Year
