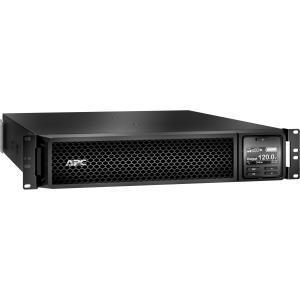

APC by Schneider Electric Smart-UPS SRT 1500VA RM 120V Network Card

UPC Code: 731304330080
Manufacturer Warranty: 2 YEAR
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: All Defects Call APC 800-890-4272
Master Pack Qty: 6
Country of Origin: TAIWAN

General Information

Manufacturer:   Schneider Electric SA
Manufacturer Part Number:   SRT1500RMXLA-NC
Manufacturer Website Address:   www.schneider-electric.com
Brand Name:   APC by Schneider Electric
Product Line:   Smart-UPS SRT
Product Name:   Smart-UPS SRT 1500VA RM 120V Network Card
Marketing Information:

High density, double-conversion on-line power protection with scalable runtime

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Product Type:   Double Conversion Online UPS

Technical Information

Receptacle Type:   NEMA 5-15R
Receptacle Detail:   6 x NEMA 5-15R

Power Description

Load Capacity:   1.50 kVA/1.35 kW
Input Voltage:   120 V AC
Output Voltage:   120 V AC
Waveform Type:   Sine Wave

Interfaces/Ports

Network (RJ-45):   Yes

Battery Information

Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   5 Minute
Typical Battery Recharge Time:   3 Hour

Physical Characteristics

Product Color:   Black
Height:   3.35" (85.09 mm)
Width:   17" (431.80 mm)
Depth:   20" (508 mm)
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   22 kg

Miscellaneous

Package Contents:

Smart-UPS SRT 1500VA RM 120V Network Card

CD with software

Communication cable

Documentation CD

Installation guide

Network management card

Rack mounting brackets

Rack mounting hardware

Rack mounting support rails

Temperature probe

USB cable

Warranty card

Energy Star:   Yes
Environmentally Friendly:   Yes

Warranty

Limited Warranty:   3 Year
