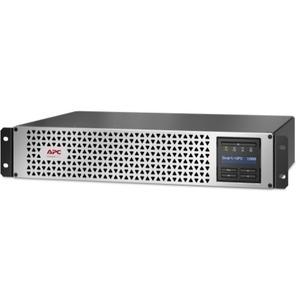

APC by Schneider Electric Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect

UPC Code: 731304341987
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: All Defects Call APC 800-890-4272
Master Pack Qty: 1
Country of Origin: UNITED STATES

General Information

Manufacturer:   Schneider Electric SA
Manufacturer Part Number:   SMTL1000RM2UC
Manufacturer Website Address:   www.schneider-electric.com
Brand Name:   APC by Schneider Electric
Product Line:   Smart-UPS
Product Name:   Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect
Marketing Information:

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   6 x NEMA 5-15R
Application/Usage:   Network Device
Application/Usage:   Network Hub
Application/Usage:   POS Terminal
Application/Usage:   Router
Application/Usage:   Server
Application/Usage:   Switch

Power Description

Load Capacity:   1 kVA/800 W
Input Voltage:   120 V AC
Input Voltage Range:   82 V AC - 144 V AC
Output Voltage:   120 V AC
Input Frequency:   60 Hz
Output Frequency:   60 Hz
Waveform Type:   Sine Wave
Surge Energy Rating:   680 J

Management

Alarm:   Configurable Delay
Alarm:   Low Battery
Alarm:   On Battery

Interfaces/Ports

Serial Port:   Yes
USB (HID Compliant) Port:   Yes

Battery Information

Battery Chemistry:   Lithium Ion (Li-Ion)
Typical Battery Recharge Time:   3 Hour

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   -40°F (-40°C) - 95°F (35°C)
Maximum Operating Elevation:   9842.52 ft (3000000 mm)
Maximum Storage Elevation:   24606.30 ft (7500000 mm)
Operating Humidity:   0% - 95%
Storage Relative Humidity:   0% - 95%
Sound Emission:   41 dB
Thermal Dissipation:   70 BTU/h

Physical Characteristics

Product Color:   Black
Height:   3.40" (86.36 mm)
Width:   17.25" (438.15 mm)
Depth:   12.52" (318.01 mm)
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   16.33 kg

Miscellaneous

Package Contents:

Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect

Installation guide

Rack mounting support rails

USB cable

Environmentally Friendly:   Yes
Environmental Certification:   Battery Directive
Environmental Certification:   REACH
Environmental Certification:   RoHS
Country of Origin:   Philippines

Warranty

Limited Warranty:   5 Year
