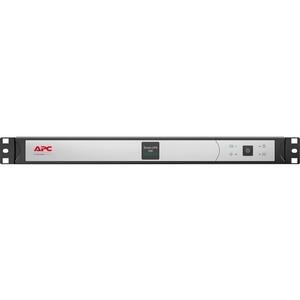

APC by Schneider Electric Smart-UPS 500VA Rack-mountable UPS

UPC Code: 731304344568
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: All Defects Call APC 800-890-4272
Master Pack Qty: 1
Country of Origin: UNITED STATES

General Information

Manufacturer:   Schneider Electric SA
Manufacturer Part Number:   SCL500RM1UNC
Manufacturer Website Address:   www.schneider-electric.com
Brand Name:   APC by Schneider Electric
Product Line:   Smart-UPS
Product Name:   Smart-UPS 500VA Rack-mountable UPS
Marketing Information:

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.

Product Type:   Line-interactive UPS

Technical Information

AVR:   Yes
Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   4 x NEMA 5-15R
Overload Protection:   Yes
Transfer Time:   6 ms
Application/Usage:   Business
Application/Usage:   Communication System
Application/Usage:   Critical System
Application/Usage:   IT Equipment
Application/Usage:   Network Device
Application/Usage:   Network Hub
Application/Usage:   POS Terminal
Application/Usage:   Router
Application/Usage:   Security System
Application/Usage:   Server
Application/Usage:   Storage System
Application/Usage:   Switch

Power Description

Load Capacity:   500 VA/400 W
Input Voltage:   120 V AC
Output Voltage:   120 V AC
Input Frequency:   63 Hz
Output Frequency:   60 Hz
Waveform Type:   Sine Wave
Surge Energy Rating:   680 J

Management

Alarm:   Configurable Delay
Alarm:   Low Battery
Alarm:   On Battery

Controls/Indicators

Status Indicators:

LED Status Display:

• On Battery
• On Line

Interfaces/Ports

Serial Port:   Yes
USB (HID Compliant) Port:   Yes

Battery Information

Battery Chemistry:   Lithium Ion (Li-Ion)
Battery Energy:   108 kJ
Backup/Run Time (Full Load):   2.70 Minute
Backup/Run Time (Half Load):   6.30 Minute
Typical Battery Recharge Time:   3 Hour
Hot Swappable:   Yes
Replaceable Battery:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   6561 ft (1999792.80 mm)
Maximum Storage Elevation:   49212 ft (14999817.60 mm)
Sound Emission (A-Weighted):   45 dB(A)

Physical Characteristics

Product Color:   Black
Product Color:   Silver
Height:   1.70" (43.18 mm)
Width:   17" (431.80 mm)
Depth:   9.10" (231.14 mm)
Rack Height:   1U
Form Factor:   Rack-mountable
Weight (Approximate):   4.22 kg

Miscellaneous

Package Contents:

Smart-UPS 500VA Rack-mountable UPS

CD with software

Documentation CD

Installation guide

Rack mounting support rails

USB cable

Software Included:   Powerchute Business Edition
Energy Star:   Yes
Environmentally Friendly:   Yes
Country of Origin:   Philippines

Warranty

Limited Warranty:   5 Year
