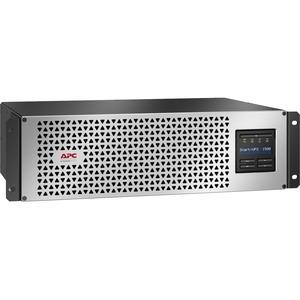

APC by Schneider Electric Smart-UPS 1500VA Rack-mountable UPS

UPC Code: 731304435471
Manufacturer Warranty: 5 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: All Defects Call APC 800-890-4272
Master Pack Qty: 12
Country of Origin: PHILIPPINES

General Information

Manufacturer:   Schneider Electric SA
Manufacturer Part Number:   SMTL1500RM3UCNC
Manufacturer Website Address:   www.schneider-electric.com
Brand Name:   APC by Schneider Electric
Product Line:   Smart-UPS
Product Name:   Smart-UPS 1500VA Rack-mountable UPS
Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   6 x NEMA 5-15R
Dataline Protection:   RJ-45
Overload Protection:   Yes
Transfer Time:   6 ms

Power Description

Load Capacity:   1.50 kVA/1.35 kW
Input Voltage:   120 V AC
Input Voltage Range:   75 V AC -154 V AC
Input Voltage Range:   82 V AC - 144 V AC
Output Voltage:   120 V AC
Input Frequency:   60 Hz
Waveform Type:   Sine Wave
Surge Energy Rating:   680 J

Management

Alarm:   Configurable Delay
Alarm:   Low Battery
Alarm:   On Battery

Controls/Indicators

Status Indicators:   Multifunction LCD Status and Control Console

Interfaces/Ports

Serial Port:   Yes
Network (RJ-45):   Yes
USB (HID Compliant) Port:   Yes

Battery Information

DC System Voltage:   36 V DC
Battery Chemistry:   Lithium Ion (Li-Ion)
Battery Energy:   864 kJ
Backup/Run Time (Full Load):   3.03 Minute
Backup/Run Time (Half Load):   8.87 Minute
Typical Battery Recharge Time:   3 Hour

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   -40°F (-40°C) - 95°F (35°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)
Maximum Storage Elevation:   25000 ft (7620000 mm)
Storage Relative Humidity:   0% - 95%
Sound Emission (A-Weighted):   45 dB(A)
Thermal Dissipation:   135 BTU/h

Physical Characteristics

Product Color:   Black
Height:   5.20" (132.08 mm)
Width:   17.20" (436.88 mm)
Depth:   11.90" (302.26 mm)
Rack Height:   3U
Form Factor:   Rack-mountable
Weight (Approximate):   19.50 kg

Miscellaneous

Package Contents:

• Smart-UPS 1500VA Rack-mountable UPS
• Installation Guide
• Rack Mounting Support Rails
• USB Cable

Environmentally Friendly:   Yes
Environmental Certification:   China RoHS
Environmental Certification:   WEEE
Country of Origin:   Philippines

Warranty

Limited Warranty:   5 Year
