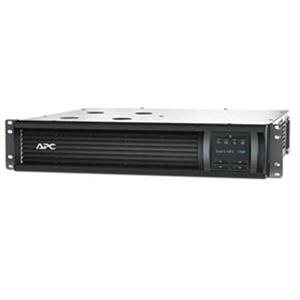

APC by Schneider Electric Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect

UPC Code: 731304322801
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: All Defects Call APC 800-890-4272
Master Pack Qty: 8
Country of Origin: CHINA

General Information

Manufacturer:   Schneider Electric SA
Manufacturer Part Number:   SMT1500RM2UC
Manufacturer Website Address:   www.schneider-electric.com
Brand Name:   APC by Schneider Electric
Product Line:   Smart-UPS
Product Name:   Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect
Marketing Information:

Marketing Information from the Manufacturer

Packaged Quantity:   1 Each
Product Type:   Line-interactive UPS

Technical Information

Receptacle Type:   NEMA 5-15P
Transfer Time:   10 ms

Power Description

Load Capacity:   1.44 kVA/1 kW
Input Voltage:   120 V AC
Input Voltage Range:   82 V AC - 144 V AC
Output Voltage:   110 V AC
Output Voltage:   120 V AC
Output Voltage:   127 V AC
Input Frequency:   60 Hz
Output Frequency:   60 Hz
Waveform Type:   Sine Wave
Surge Energy Rating:   680 J

Management

Network Management:   SmartSlot
Alarm:   Configurable Delay
Alarm:   Low Battery

Controls/Indicators

Status Indicators:   LCD Status

Interfaces/Ports

Serial Port:   Yes
Network (RJ-45):   Yes
USB (HID Compliant) Port:   Yes

Battery Information

Number of Batteries:   1
Battery Chemistry:   Lead Acid
Battery Energy:   1555.2 kJ
Battery Life:   6 Year
Typical Battery Recharge Time:   3 Hour

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   41°F (5°C) - 235.4°F (113°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)
Maximum Storage Elevation:   50000 ft (15240000 mm)
Operating Humidity:   0% - 95%
Storage Relative Humidity:   0% - 95%
Sound Emission (A-Weighted):   45 dB(A)
Thermal Dissipation:   225 BTU/h

Physical Characteristics

Product Color:   Black
Height:   3.39" (86 mm)
Width:   17.01" (432 mm)
Depth:   18.78" (477 mm)
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   26.50 kg

Miscellaneous

Package Contents:

Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect

Installation guide

Rack mounting support rails

USB cable

Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   ENERGY STAR 2.0
Environmental Certification:   REACH
Environmental Certification:   RoHS
Country of Origin:   Philippines

Warranty

Limited Warranty:   3 Year
