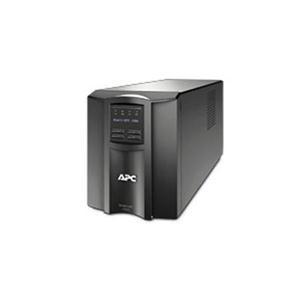

APC by Schneider Electric Smart-UPS 1500VA LCD 120V with SmartConnect

UPC Code: 731304322795
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: All Defects Call APC 800-890-4272
Master Pack Qty: 12
Country of Origin: UNITED STATES

General Information

Manufacturer:   Schneider Electric SA
Manufacturer Part Number:   SMT1500C
Manufacturer Website Address:   www.schneider-electric.com
Brand Name:   APC by Schneider Electric
Product Line:   Smart-UPS
Product Model:   SMT1500C
Product Name:   Smart-UPS 1500VA LCD 120V with SmartConnect
Marketing Information:

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.

More from the Manufacturer

Packaged Quantity:   1 Each
Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   8 x NEMA 5-15R
Transfer Time:   6 ms
Application/Usage:   Network Device
Application/Usage:   Network Hub
Application/Usage:   POS Terminal
Application/Usage:   Router
Application/Usage:   Server
Application/Usage:   Switch

Power Description

Load Capacity:   1.44 kVA/1 kW
Input Voltage:   120 V AC
Input Voltage Range:   75 V AC - 154 V AC
Input Voltage Range:   82 V AC - 144 V AC
Output Voltage:   110 V AC
Output Voltage:   120 V AC
Output Voltage:   127 V AC
Input Frequency:   60 Hz
Output Frequency:   60 Hz
Waveform Type:   Sine Wave
Surge Energy Rating:   680 J

Management

Alarm:   Configurable Delay
Alarm:   Low Battery

Controls/Indicators

Status Indicators:   LCD Status

Battery Information

Number of Batteries:   1
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   7 Minute
Battery Life:   5 Year
Typical Battery Recharge Time:   3 Hour
Hot Swappable:   Yes
Replaceable Battery:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   41°F (5°C) - 235.4°F (113°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)
Maximum Storage Elevation:   50000 ft (15240000 mm)
Storage Relative Humidity:   0% - 95%
Sound Emission (A-Weighted):   45 dB(A)
Thermal Dissipation:   225 BTU/h

Physical Characteristics

Product Color:   Black
Height:   8.62" (218.95 mm)
Width:   6.73" (170.94 mm)
Depth:   17.28" (438.91 mm)
Form Factor:   Tower
Weight (Approximate):   24.60 kg

Miscellaneous

Package Contents:

Smart-UPS 1500VA LCD 120V with SmartConnect

Installation guide

USB cable

Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   ENERGY STAR 2.0
Environmental Certification:   REACH
Environmental Certification:   RoHS
Country of Origin:   Philippines

Warranty

Limited Warranty:   3 Year
