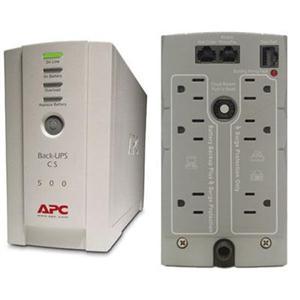

APC Back-UPS CS 500VA

UPC Code: 731304016304
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: All Defects Call APC 800-890-4272
Master Pack Qty: 0
Country of Origin: TAIWAN

General Information

Manufacturer:   Schneider Electric SA
Manufacturer Part Number:   BK500
Manufacturer Website Address:   www.schneider-electric.com
Brand Name:   APC by Schneider Electric
Product Line:   Back-UPS
Product Series:   CS
Product Name:   BK500 120V Backup System
Marketing Information:

Protect your electronics with this 6-outlet, 120-volt battery backup system. 300-watt back-UPS features a surge energy rating of 480 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean, uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit.

Packaged Quantity:   1 Each
Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   3 x NEMA 5-15R
Dataline Protection:   RJ-11
Cord Length:   6 ft

Power Description

Load Capacity:   500 VA
Input Voltage:   110 V AC
Output Voltage:   120 V AC
Power Consumption:   300 W
Waveform Type:   Stepped Sine Wave
Surge Energy Rating:   480 J

Management

Alarm:   Low Battery
Alarm:   On Battery
Alarm:   Overload

Controls/Indicators

Status Indicators:   LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Battery Characteristics:   Spill-proof, Maintenance-free
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   3 Minute
Backup/Run Time (Half Load):   15 Minute
Typical Battery Recharge Time:   8 Hour

Environmental Conditions

Maximum Operating Temperature:   113°F (45°C)
Sound Emission (A-Weighted):   45 dB(A)
Thermal Dissipation:   24 BTU/h

Physical Characteristics

Product Color:   Beige
Height:   6.50" (165.10 mm)
Width:   3.60" (91.44 mm)
Depth:   11.20" (284.48 mm)
Form Factor:   Tower
Weight (Approximate):   6.26 kg

Miscellaneous

Package Contents:

BK500 120V Backup System

CD with software

Cord management straps

USB cable

User manual

Additional Information:

• Additional Surge Protected Outlets
• Cord Management
• Software
• USB compatible

Certifications & Standards:

• FCC Part 15 Class B
• Industry Canada
• UL 1778
• cUL Listed

Recycled:   No
Assembly Required:   No
Energy Star:   Yes
Country of Origin:   Philippines

Warranty

Limited Warranty:   3 Year
Additional Warranty Information:

3 years warranty
