Amer Power-over-Ethernet Injector

UPC Code: 650177152851
Manufacturer Warranty: 1 YEAR
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exch.-Call Vendor 905-501-8897
Master Pack Qty: 50
Country of Origin: CHINA

General Information

Manufacturer:   Amer Networks, Inc
Manufacturer Part Number:   PIG15
Manufacturer Website Address:   www.amermounts.com
Brand Name:   Amer
Product Model:   PIG15

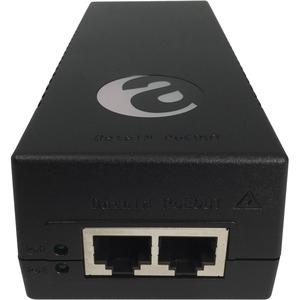

Product Name:   Power-over-Ethernet Injector
Marketing Information:

The PIG15 is a single port Mid-Span offering a compact and cost effective and fully IEEE802.3af compliant solution.It can be used to power wireless LAN / WAN access points, IP security cameras, VoIP telephones and any other low port density installations.

The PIG15 PoE injector eliminates the need for an external power supply and any associated AC/DC power cabling. It provides a compact, affordable, safe and reliable power solution over existing Ethernet cabling.

Packaged Quantity:   1
Product Type:   PoE Injector

Technical Information

Protection Type:   Surge Protection

Power Description

Input Voltage:   120 V AC
Input Voltage:   230 V AC
Maximum Output Voltage:   52 V DC
Maximum Input Current:   300 mA
Minimum Frequency:   50 Hz
Maximum Frequency:   60 Hz
Maximum Output Power:   15.40 W

Interfaces/Ports

Input Ports:   1 x Gigabit Ethernet
Output Ports:   1 x Gigabit Ethernet

Physical Characteristics

Form Factor:   External
Height:   1.57" (40 mm)
Width:   2.42" (61.50 mm)
Depth:   5.73" (145.50 mm)

Miscellaneous

Certifications & Standards:

• IEEE802.3af (PoE)
• FCC (Part15, Class B)
• CE (EN55022/24)
• C-Tick
• (AS/NZS55022/24)
• CCC (GB4943)
• KCC (K60950-1)
• BSMI (CNS13438)
• UL/cUL (EN6095-1)
• ICES (ICES-003)
• GS (EN60950-1)
• CE/LVD (EN60950-1)
• SAA (AS/NZS60950-1)
• CCC (GB4943)
• KC (K60950-1)
• PSE (J60950-1)
• NOM (IEC60950-1)
• S-mark (IEC60950-1)
• BSMI (CNS14336)
• EAC (LEC60950-1)
• BIS (BISIS13252)

GS

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China
