General Information
Manufacturer:
Acer, Inc
Manufacturer Part Number:
UM.QB7AA.001
Manufacturer Website Address:
www.acer.ca
Brand Name:
Acer
Product Series:
B7
Product Model:
B247Y
Product Name:

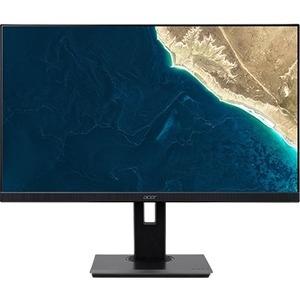

B247Y Widescreen LCD Monitor
Product Type:
LCD Monitor
Technical Information
Number of Screens:
1
Viewable Screen Size:
23.8"
Screen Mode:
Full HD
Panel Technology:
In-plane Switching (IPS) Technology
Response Time:
4 ms GTG
Aspect Ratio:
16:9
Pixel Pitch:
10.81 mil (0.27 mm)
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Adjustable Display Pivot:
Yes
Mount Type:
Wall Mountable
Backlight Technology:
LED
Maximum Adjustable Height:
4.72" (120 mm)
Tilt Angle:
-5° to 25°
Swivel Angle:
-45° to 45°
Adjustable Stand Height:
Yes
Video
Maximum Resolution:
1920 x 1080
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
100,000,000:1
Brightness:
250 cd/m²
Tearing Prevention Technology:
Adaptive Sync
Audio
Number of Speakers:
2
Speakers:
Yes
Speaker Output Power:
2 W
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Number of HDMI Inputs:
1
Number of USB 3.0 Upstream Ports:
1
Number of USB 3.0 Downstream Ports:
4
Number of DisplayPorts:
1
Built-in Devices
Built-in Devices:
USB Hub
Power Description
Input Voltage:
120 V AC
Input Voltage:
230 V AC
Standby Power Consumption:
390 mW
Off-Mode Power Consumption:
270 mW
Operating Power Consumption (Energy Star):
15 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Black
Height:
12.72" (323 mm)
Width:
21.26" (540 mm)
Depth:
2.56" (65 mm)
Height with Stand:
19.65" (499 mm)
Width with Stand:
21.26" (540 mm)
Depth with Stand:
7.60" (193 mm)
Weight (Approximate):
3.64 kg
Weight with Stand (Approximate):
5.59 kg
Miscellaneous
Package Contents:
- B247Y Widescreen LCD Monitor
- 1 x Displayport Cable
- Power Cord
- 1 x VGA Cable
Environmentally Friendly:
Yes
Environmental Certification:
TCO Certified
Country of Origin:
China
TCO Certified:
Yes
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
Free
